PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. We do NOT provide technical support for smart thermostats.
Cellar Size - Approx. 1000 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
BTU/h Rating - The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Note: The systems do not include a line set.
@60°F condenser intake (sensible/total):
Medium Fan Speed- 4871/5430
High Fan Speed- 5324/6087
@75°F condenser intake (sensible/total):
Medium Fan Speed- 4752/5291
High Fan Speed- 5198/5914
@85°F condenser intake (sensible/total):
Medium Fan Speed- 4631/5147
High Fan Speed- 4945/5351
- Dimensions - Evaporator: 35.75”L x 14.5”W x 12.75”H, Condenser: 16.08”L x 16.23”W x 12.61″H
- Drain Line - 1/4″ ID clear plastic tubing (not provided)
*Specs above reflect performance values using 220V Condenser

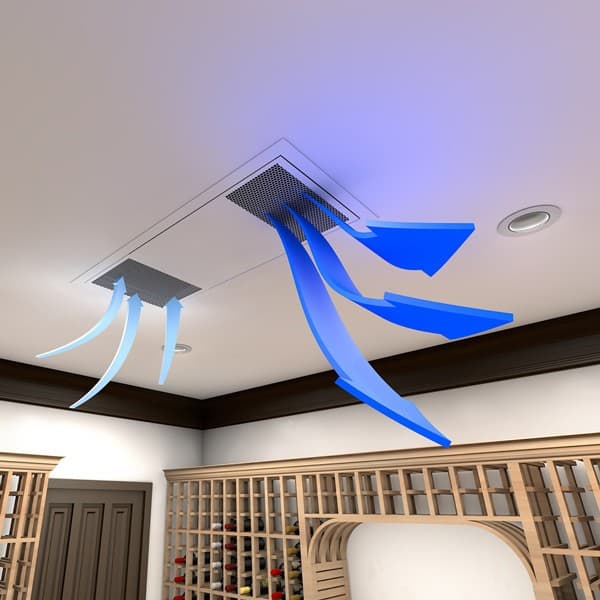

- Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment
- Virtually invisible inside the cellar
- Flare fittings for easy installation

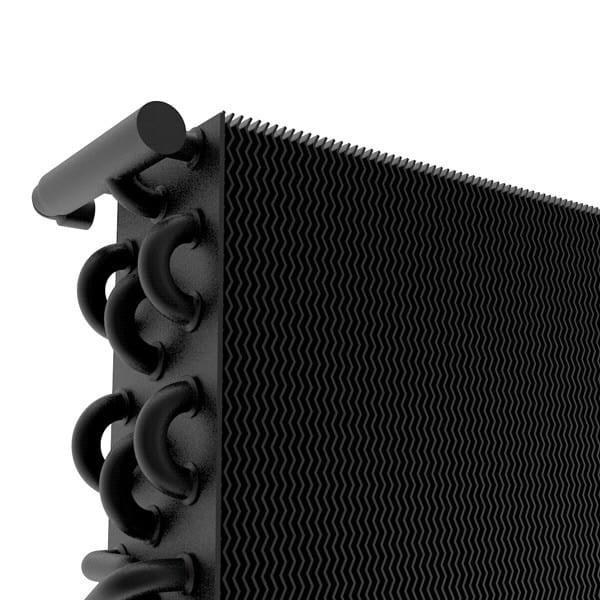

- Duramax coils
- Standard and 24V thermostat options available
- 2-speed fan switch

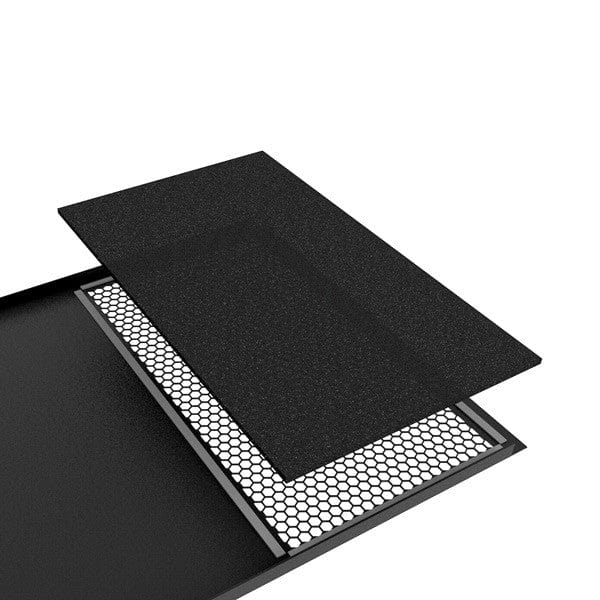

- Hex mesh grille with air filter

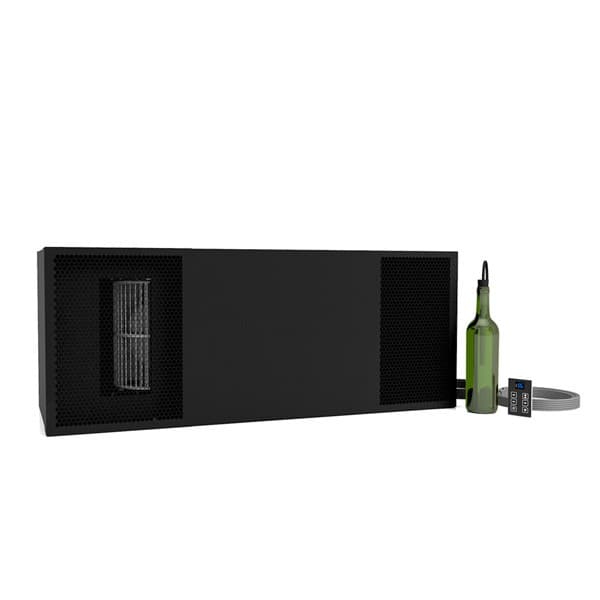

- KDT Digital Controller/Thermostat with 50-ft. cable
- 220V High Efficiency (H.E.) Condenser Option
- Please see important warranty information below

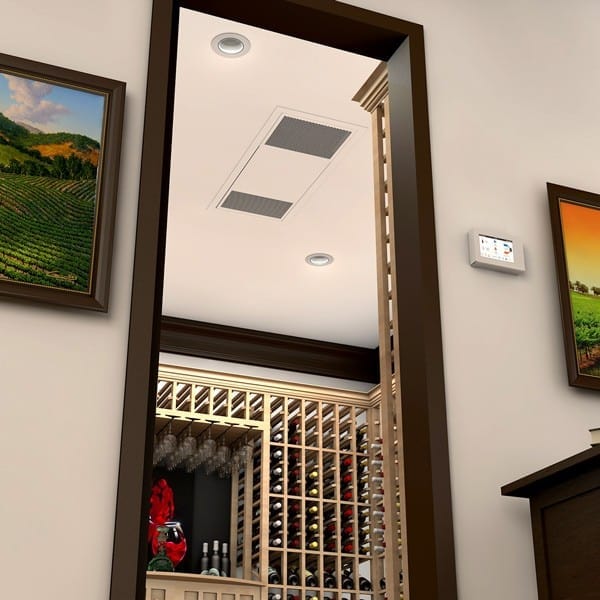

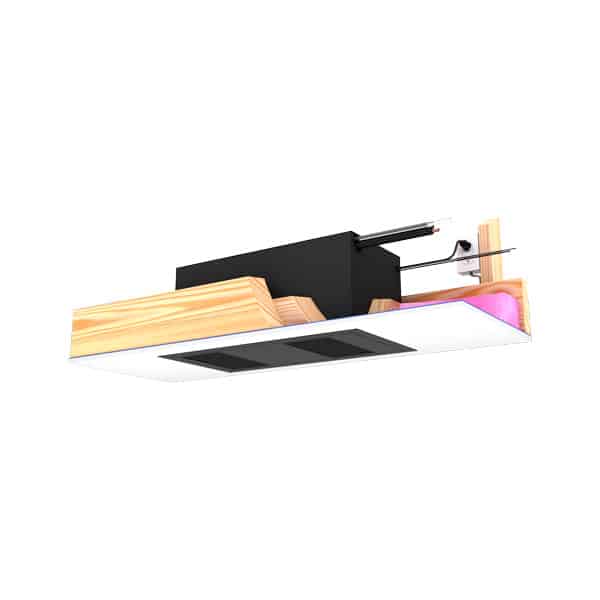

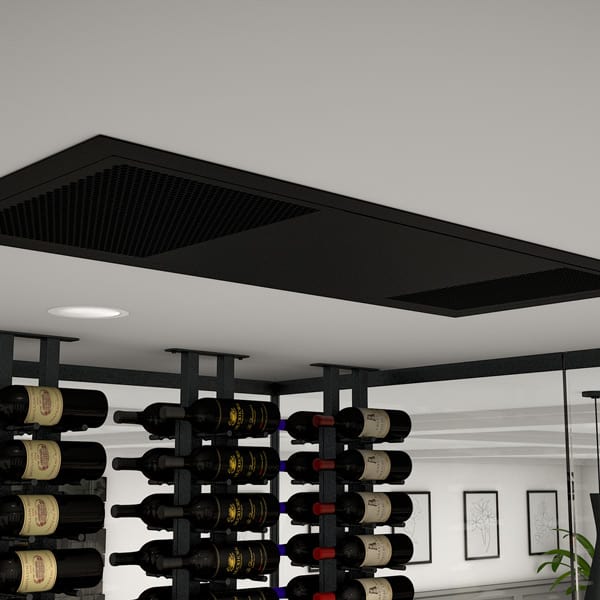

At WhisperKOOL, we have created a ceiling-mounted 4000 split system evaporator because we want you to experience KOOL without seeing it. Your wine should be the center of attention, not a cooling unit.

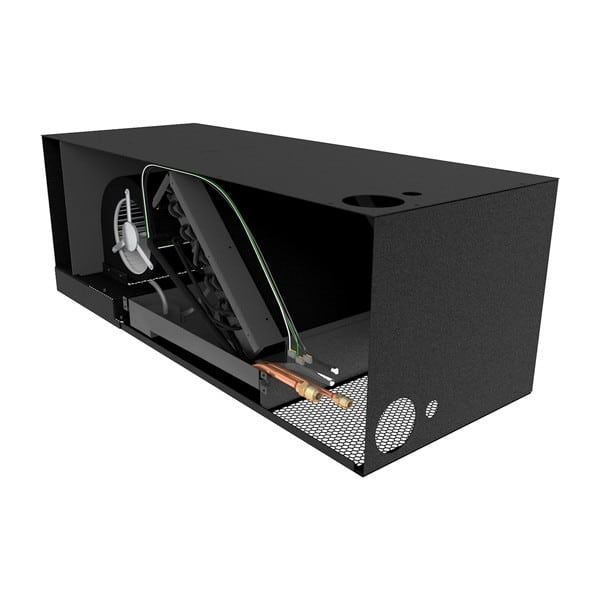

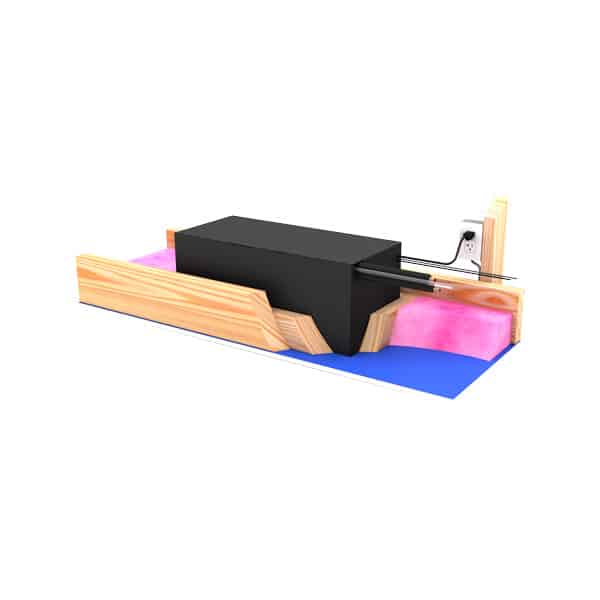

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field. The redesign includes e-coated duramax evaporator coils which will improve system performance, and a new looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.
Note: A qualified HVAC-R technician is required for the installation of your Ceiling Mount 4000. Failure to have the system installed by a qualified technician will void the warranty.

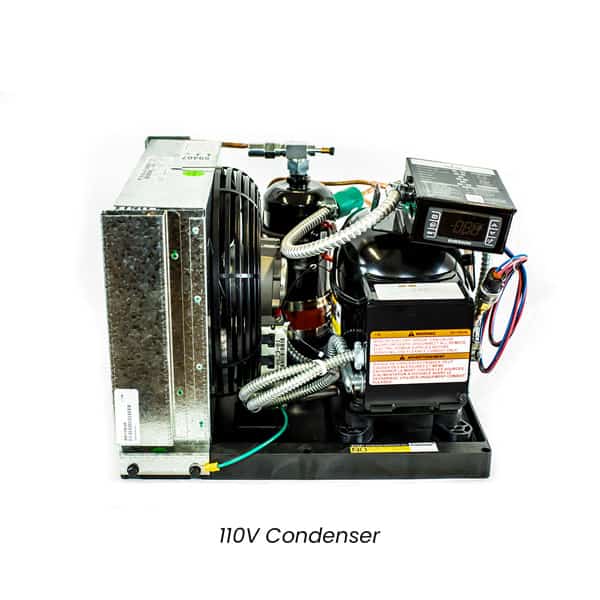

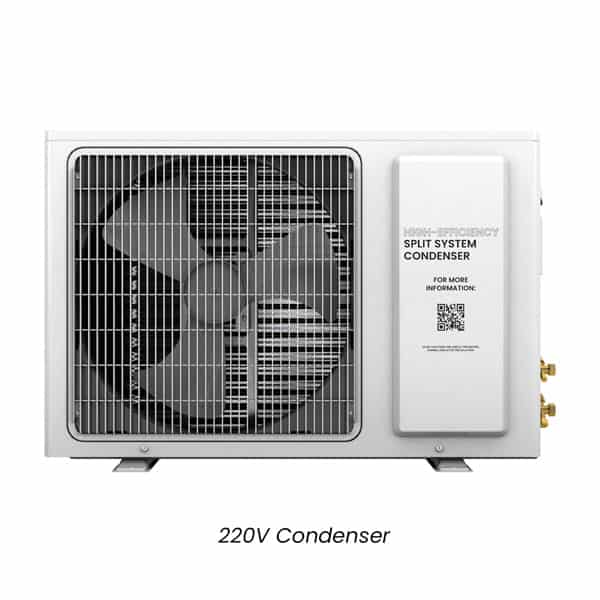

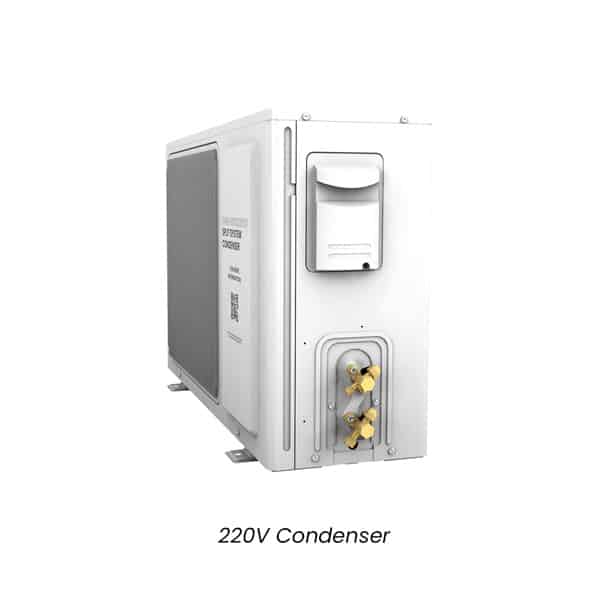

The 220V High Efficiency CondensersThe 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & ability to operate in extreme climates. For more information about our latest Split-System innovation, please watch the following videos:
- Product Specs
- Installation Manual
- H.E Owner Manual
- Owner Manual
- Owner Manual – Addendum (after 2/3/20)
- Owner Manual – with 24V Thermostat Conversion Kit
