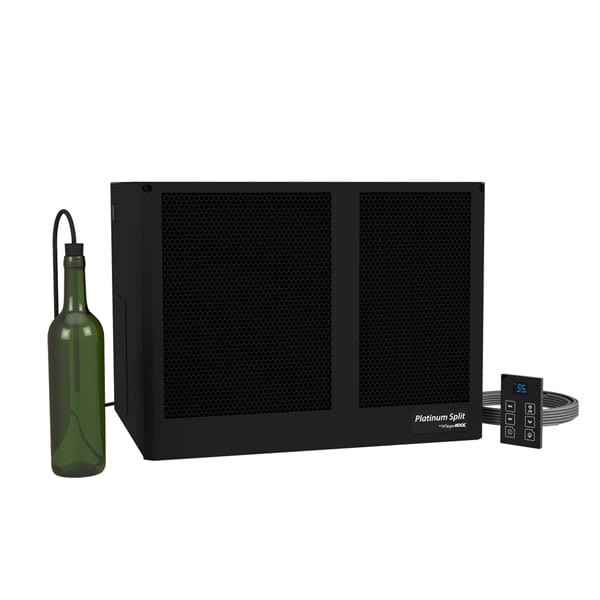

WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

Original price $7,489.00 - Original price $7,489.00
Original price
$7,489.00
$7,489.00 - $7,489.00
Current price $7,489.00

PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. We do NOT provide technical support for smart thermostats.

Specifications:

  • Cellar Size - Approx. 1750 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
  • BTU/h Rating - The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
  • Note: The systems do not include a line set.


    @60°F condenser intake (sensible/total):

    Ductless – Wall Mount

    Medium Fan Speed – 4814/5687

    High Fan Speed – 5133/5777

    Fully-Ducted

    Medium Fan Speed – 4641/5415

    High Fan Speed – 5028/5521


    @75°F condenser intake (sensible/total):

    Ductless – Wall Mount

    Medium Fan Speed – 4455/4997

    High Fan Speed – 4607/5012

    Fully-Ducted

    Medium Fan Speed – 4427/4839

    High Fan Speed – 4580/4969



    @85°F condenser intake (sensible/total):

    Ductless – Wall Mount

    Medium Fan Speed – 4370/4834

    High Fan Speed – 4577/4982

    Fully-Ducted

    Medium Fan Speed – 4322/4798

    High Fan Speed – 4479/4879



  • Dimensions - 20”L x 20.5”W x 15.5”H
  • Drain Line - ti: 1/2” ID tubing, tiR: 3/8″ ID tubing

*Specs above reflect performance values using 220V Condenser

Features:

  • Quiet and efficient operation
  • Advanced electronic control system
  • 2-speed fan switch to adjust BTU/h capacity
  • Standard and 24V thermostat options are available
  • Condensing unit can be placed outdoors with the purchase of exterior housing
  • 55ºF temperature differential between the cellar and condensing unit air intake temperature
  • KDT Digital Controller/Thermostat with 50-ft. cable
  • 220V High Efficiency (H.E.) Condenser Option
  • Please see important warranty information below
        WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

        Description:

        Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.

        The Platinum Split 8000 allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

        If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.


        Note: A qualified HVAC-R technician is required for the installation of Platinum Split 8000 systems. Failure to have the system installed by a qualified technician will void the warranty.


        WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

        WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

        WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

        WhisperKOOL Platinum Split 8000 Ductless (110V or 220V Condenser)

        The 220V High Efficiency Condensers

        The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & ability to operate in extreme climates. For more information about our latest Split-System innovation, please watch the following videos:

        Resources:

        • Product Specs
        1. View 110V Condenser
        2. View 220V High-Efficiency H.E Condenser
        • Installation Manual
        1. H.E Owner Manual
        2. Owner Manual
